HTSL390 Mini Skid Steer Loader with Max Working Height 2398mm

Max pin height : 1815 mm

Max Dumping Angle : 23

Max Dumping height : 1430mm

Max Dumping distance : 366mm

Brand Name : Hightop

Model Number : HTSL390

Certification : CE，EPA，ISO，TUV

Place of Origin : China

MOQ : 1 Set

Payment Terms : Western Union,T/T,D/A,D/P,L/C

Supply Ability : 100 set per month

Delivery Time : 5-14 work days

Packaging Details : Wooden case

Max working height : 2398mm

Contact Now

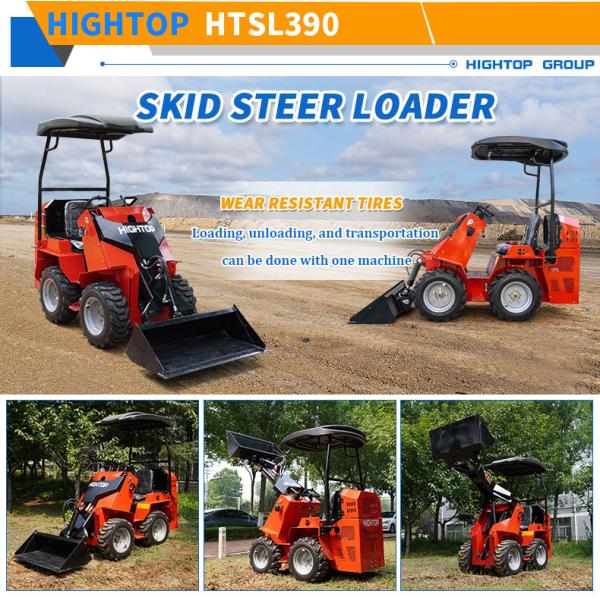

HTSL390 Skid Steer Loader
Key Features
  • Operation Panel: Hydraulic control lever with complete functions and sensitive control arms for easy operation
  • Hydraulic System: Powerful system providing precise control and enhanced capabilities for maximum productivity
  • Heavy-Duty Bucket: Strong load-bearing capacity for easy loading and unloading
  • Wear-Resistant Tires: Anti-slip, wear-resistant design with strong grip and flexible steering

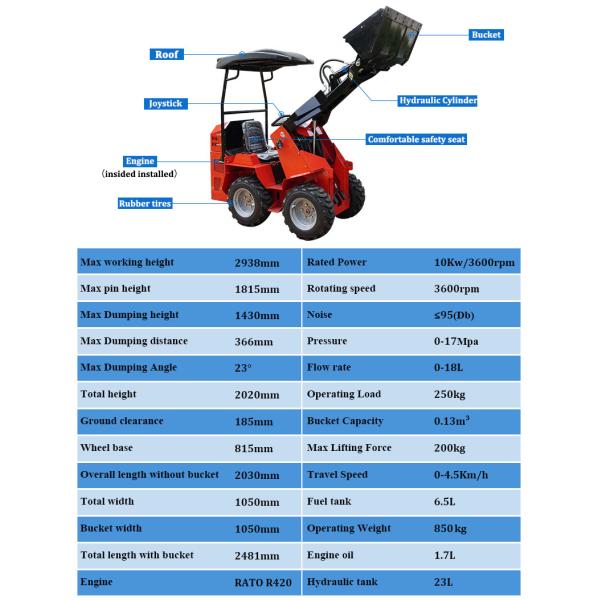

Technical Specifications
Dimension Value
Max working height 2398mm
Max pin height 1815 mm
Max Dumping height 1430mm
Max Dumping distance 366mm
Max Dumping Angle 23°
Total height 2020mm
Ground clearance 185 mm
Wheel base 815mm
Overall length without bucket 2030mm
Total width 1050mm
Bucket width 1050mm
Total length with bucket 2481mm
Engine Specification
Engine Model RATO R420
Rated Power 10Kw/3600rpm
Rotating speed 3600 rpm
Noise Level ≤95 Db
Hydraulic System Specification
Pressure 0-17 Mpa
Flow rate 0-18L
Operating Load 250KG
Bucket Capacity 0.13m³
Max Lifting Force 200 Kg
Travel Speed 0-4.5Km/h
Operating Weight 850kg
Oil Capacity Value
Fuel tank 6.5L
Engine oil 1.7L
Hydraulic tank 23L
